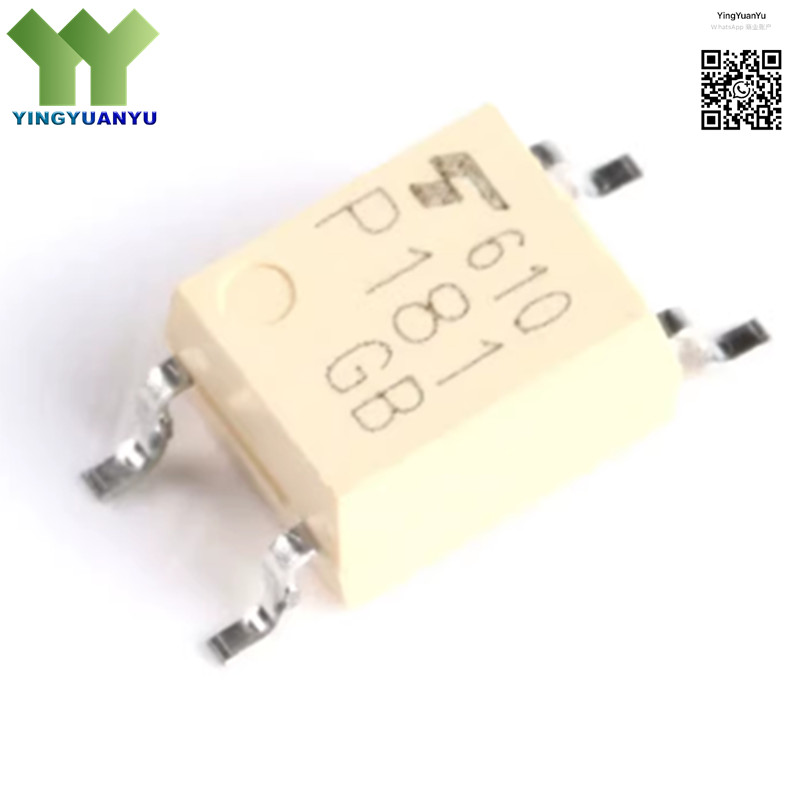

TLP181-GB
TLP181-GB
| Part Number | TLP181-GB |
|---|---|
| Manufacturer | Toshiba Electronic Devices & Storage Corporation |
| Category | Optoelectronics > Optoisolators > Transistor, Photovoltaic Output |
| Description | OPTOISOLATOR 1CH TRANS 4-SOP GREEN |
Product Overview
The TLP181-GB is a single-channel phototransistor optocoupler housed in a compact 4-SOP surface-mount package with halogen-free green molding compound. It integrates a GaAs infrared LED coupled with an NPN silicon phototransistor, providing high isolation voltage, stable current transfer ratio, and low power consumption. This device delivers reliable electrical isolation and noise suppression for compact industrial, consumer, and communication electronic systems.
| Specifications | Details |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA/CAD Models | Available |
| Warranty | 1 Year |
| Brand | Toshiba |
| Number of Channels | 1 Channel |
| Isolation Voltage | 5000Vrms |
| Output Type | NPN Phototransistor |
| Current Transfer Ratio (CTR) | 100% ~ 600% at IF=5mA, VCE=5V |
| Input Forward Voltage | 1.2V (Typ) at IF=10mA |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SOP |
| Package Features | Halogen-Free, Green Molding Compound |
Typical Applications
- Industrial Control Equipment
- Switching Power Supplies
- Microcontroller I/O Isolation
- Programmable Logic Controllers (PLC)
- Consumer Electronics
- Portable Electronic Devices
- Measurement Instruments
- Signal Isolation and Noise Reduction Circuits
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
