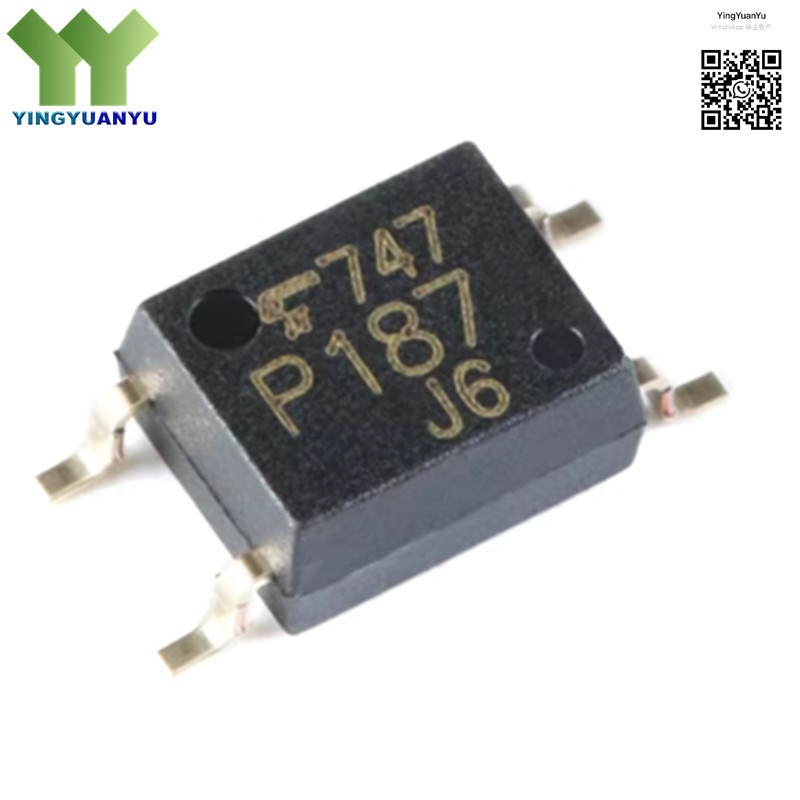

TLP187
TLP187
| Part Number | TLP187 |
|---|---|
| Manufacturer | Toshiba Electronic Devices & Storage Corporation |
| Category | Optoelectronics > Optoisolators > Transistor, Photovoltaic Output |
| Description | OPTOISOLATOR 1CH TRANS 4-SOP |
Product Overview
The TLP187 is a single-channel phototransistor optocoupler featuring a compact 4-SOP surface-mount package. It consists of a gallium arsenide infrared emitting diode optically coupled to a high-performance NPN silicon phototransistor, providing high isolation voltage, stable current transfer ratio, and low power consumption. This device delivers reliable electrical signal isolation and noise suppression for a wide range of consumer and industrial electronic applications.
| Specifications | Details |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA/CAD Models | Available |
| Warranty | 1 Year |
| Brand | Toshiba |
| Number of Channels | 1 Channel |
| Isolation Voltage | 5000Vrms |
| Output Type | NPN Phototransistor |
| Current Transfer Ratio (CTR) | 100% ~ 600% at IF=5mA, VCE=5V |
| Input Forward Voltage | 1.2V (Typ) at IF=10mA |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SOP |
| Package Features | Halogen-Free, Green Molding Compound |
Typical Applications
- Industrial Control Systems
- Switching Power Supplies
- Microcontroller I/O Isolation
- Programmable Logic Controllers (PLC)
- Consumer Electronics
- Home Appliance Control Circuits
- Measurement Instruments
- Signal Isolation and Noise Reduction Circuits
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
