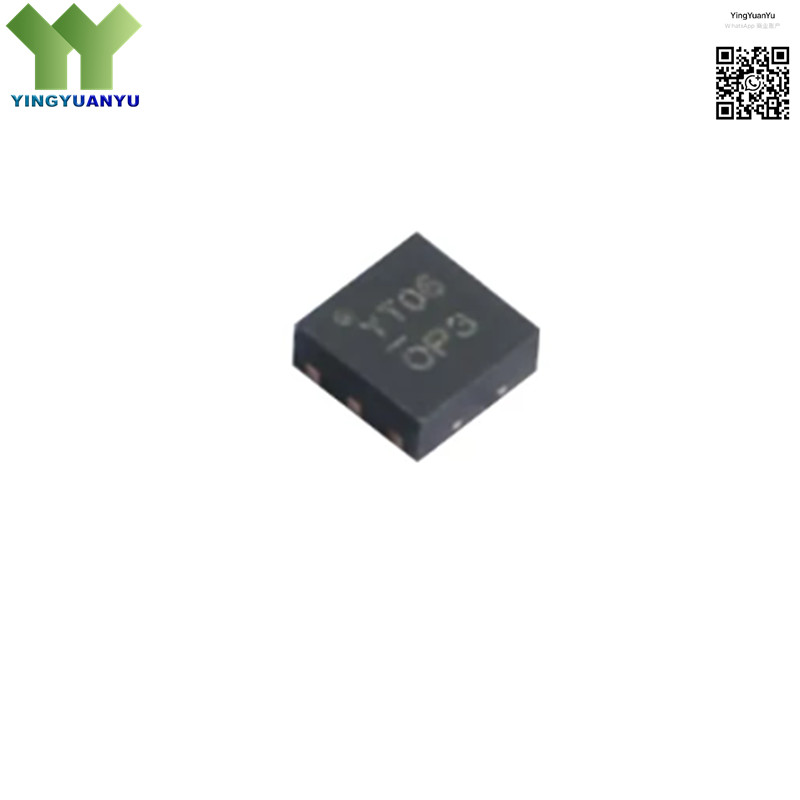

YAT-6A+
YAT-6A+
| Part Number | YAT-6A+ |
|---|---|
| Manufacturer | Mini-Circuits |
| Category | RF Attenuators; Fixed Attenuator |
| Description | 6dB Fixed RF Attenuator, 50Ω, DC to 18 GHz, RoHS Compliant, VDFN-6-EP Package |
Product Overview
The YAT-6A+ is a high-performance 50-ohm fixed RF attenuator designed for wideband signal control, impedance matching, and power reduction in RF and microwave systems. It provides a stable 6dB attenuation value with excellent flatness, low insertion loss, and high power handling capability across a broad frequency range from DC to 18 GHz. The device features a compact surface-mount package, superior repeatability, and reliable performance in industrial, communication, and test environments. Fully RoHS-compliant and optimized for high-frequency PCB integration, it ensures consistent signal attenuation for professional RF applications.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Mini-Circuits |
| Attenuation Value | 6 dB |
| Frequency Range | DC ~ 18 GHz |
| Impedance | 50 Ω |
| Package Type | VDFN-6-EP |
| Operating Temperature | -40°C to +85°C |
Typical Applications
- RF Signal Level Control & Attenuation
- Impedance Matching Networks
- RF Transmitter & Receiver Circuits
- Test & Measurement Equipment
- Broadband Communication Systems
- Microwave & RF Module Design
- Signal Power Reduction & Protection
- High-Frequency PCB Attenuation Solutions
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
