ZCAT1518-0730
ZCAT1518-0730
| Part Number | ZCAT1518-0730 |
|---|---|
| Manufacturer | TDK Corporation |
| Category | Ferrite Cores; Clip-on Ferrite Core; EMI Suppression Core |
| Description | Split Type Clip-on Ferrite Core, 7mm Inner Diameter,25Ω,100MHz, EMI/RFI Noise Suppression Filter for Cables and Wires |
Product Overview

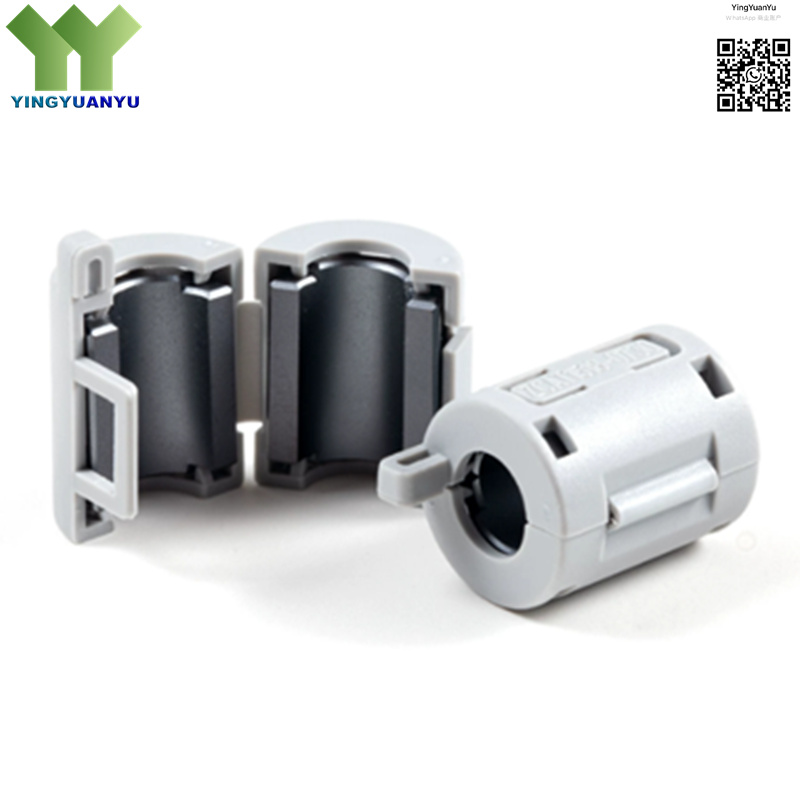

The ZCAT1518-0730 is a high-performance snap-on ferrite core from TDK Corporation, designed for efficient EMI/RFI noise suppression. It features a split clip-on design for tool-free, quick installation on cables without disassembly or soldering. Constructed with high-quality nickel-zinc ferrite material, this core delivers excellent high-frequency noise attenuation, enhances system EMC performance, and is widely applied in consumer electronics, industrial controls, automotive electronics, and communication devices.
| Key Specifications | |
|---|---|
| Brand | TDK Corporation |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | Clip-on Ferrite Core (Split Type) |
| Mounting Type | Snap-on / Clip-on Cable Mount |
| Surface Marking / Silkscreen | ZCAT1518-0730 |
| Inner Diameter | 7.0 mm |
| Core Material | Nickel-Zinc Ferrite |
| Frequency Range | 100MHz |
| Operating Temperature | -40°C to +125°C |
Typical Applications
- Power Cables & Signal Lines EMI Filtering
- Consumer Electronics (PC, TV, Audio, Chargers)
- USB, HDMI, LAN and Communication Cables
- Industrial Control Equipment Wiring
- Automotive Electronic Cable Noise Reduction
- Switching Power Supply Output Lines
- Electromagnetic Compatibility (EMC) Improvement
- High-Frequency Noise Suppression for Small Wires
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
